MONDRAKER Superfoxy R
- Značka
- Mondraker
- Kategorie
- Enduro kola
- Modelový rok
- 2024
- Cena
- 107 999 Kč
- Do obchodu

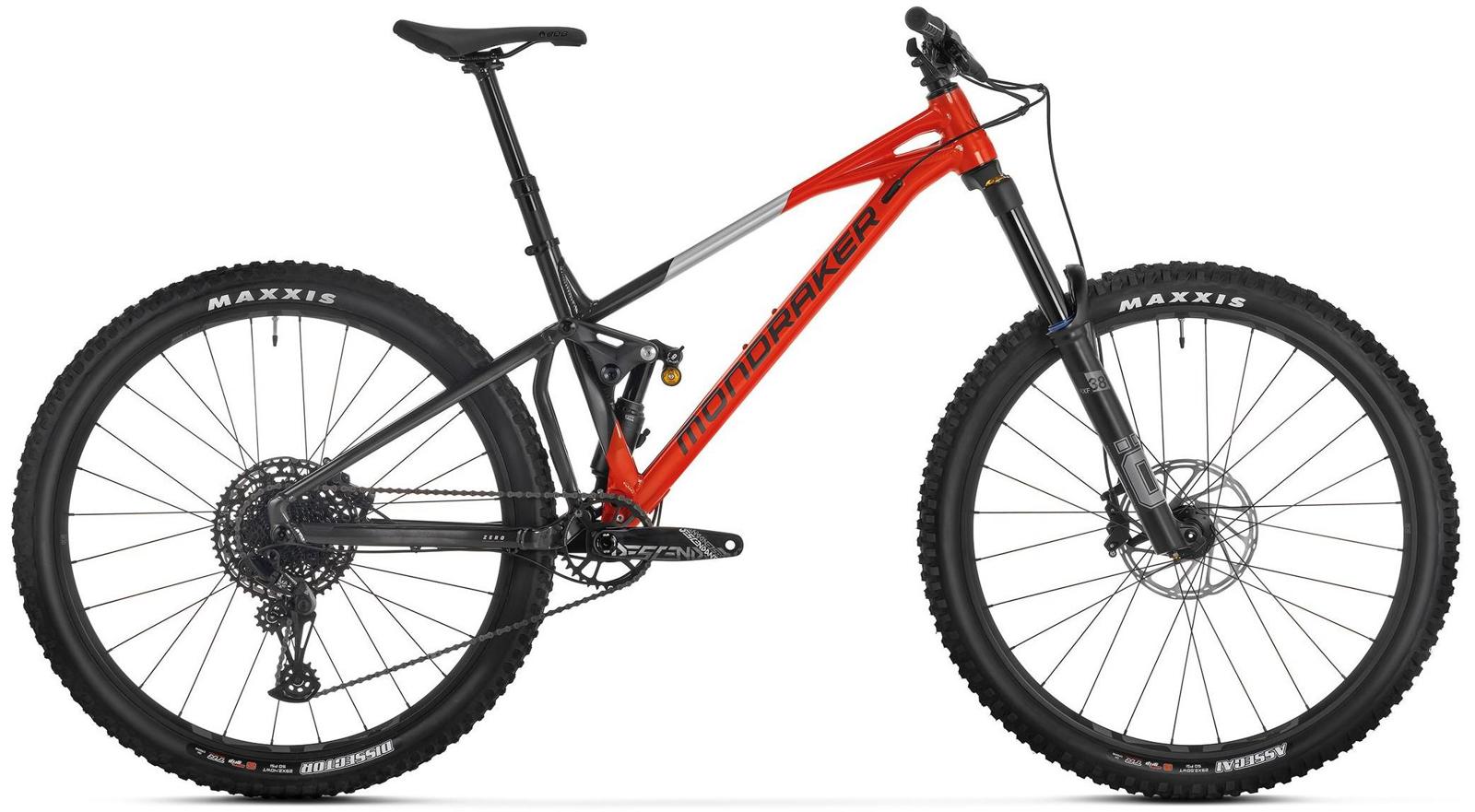

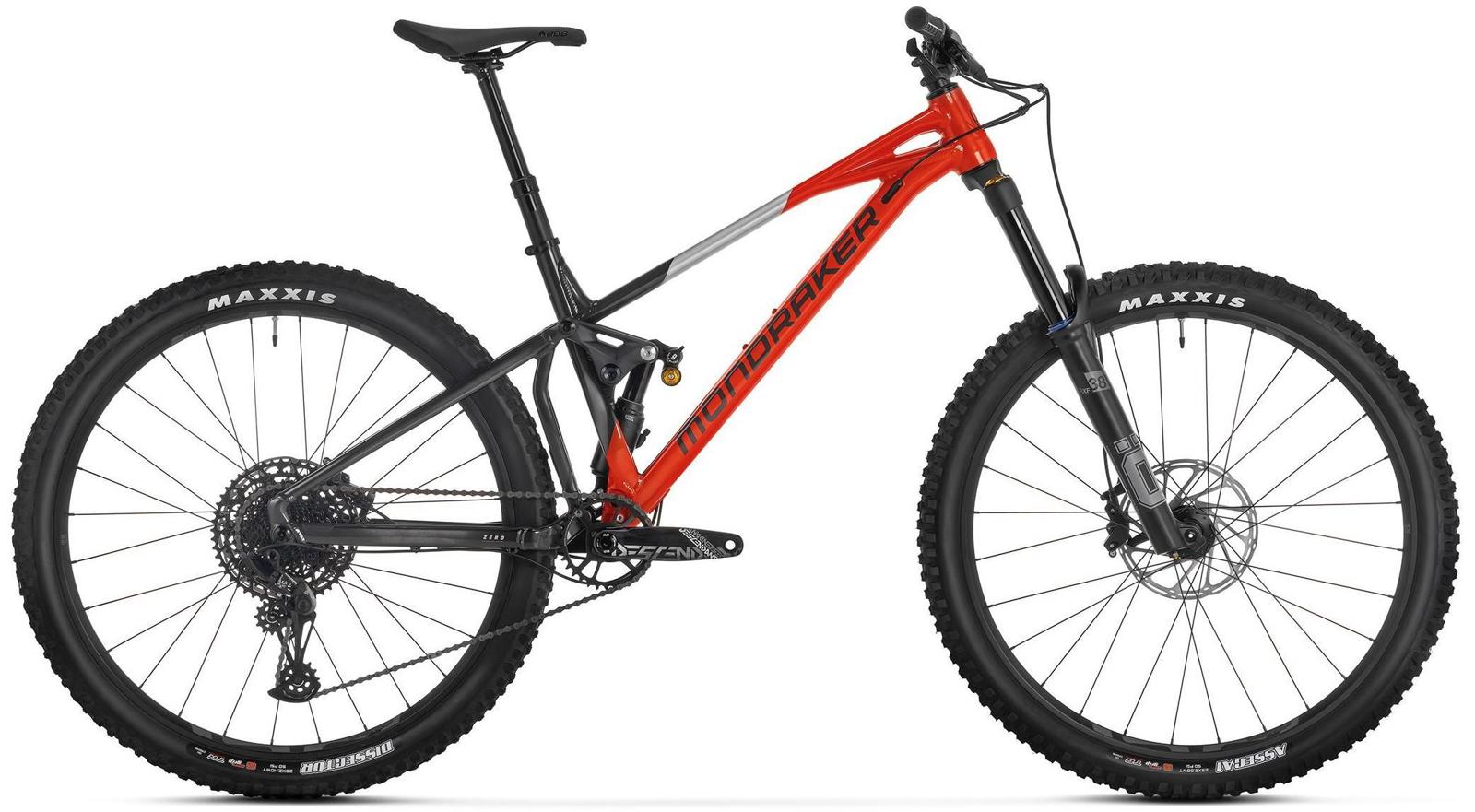

MONDRAKER Superfoxy R, flame red/vortex grey/racing silver
Specifikace MONDRAKER Superfoxy R
- Sezóna
- jaro/léto24
- Barva
- Red
- Pohlaví
- UNISEX
- Rám
- SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05
- Velikosti
- S: 380mm / M: 420mm / L: 470mm / XL: 510mm
- Zadní tlumič
- Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
- Nastavení tlumiče
- C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
- Vidlice
- Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
- Hlavové složení
- Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45?x45?, bottom 51.9x40x8x45?x45?
- Představec
- Onoff Sulfur FG 30mm 0?, 6061 forged alloy, 31.8mm barbore
- Řídítka
- Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9? backsweep, 5? upsweep, 31.8mm barbore
- Sedlo
- SDG BEL-AIR 3.0, LPU foam, steel rails
- Sedlovka
- Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
- Přední brzda
- Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Zadní brzda
- Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Brzdové páčky
- Sram DB8, tool reach adjust, lever pivot bushings
- Ráfky
- e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
- Dráty
- e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
- Přední náboj
- e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
- Zadní náboj
- e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
- Přední plášť
- Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
- Zadní plášť
- Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
- Kliky
- Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 56´5
- Středové složení
- Sram DUB BSA, sealed bearings, 73mm, superboost
- Převodník
- 32T, CNC-machined alloy, X-SYNC 2
- Řetěz
- Sram SX Eagle, 12s, Powerlock
- Přehazovačka
- Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
- Řadící páčka
- Sram Trigger SX Eagle, 12s, X-Actuation 1:1
- Kazeta
- Sram PG-1230, 11-50T, 12s
- Počet převodů
- 1X12
- Velikost kol
- 29
- Patka přehazovačky
- Mondraker M068
- Hmotnost
- 17,2 kg
- Typ vidlice
- SUSPENSION FORK
- Materiál rámu
- ALUMINIUM
- Zadní zdvih
- 160 mm
- Přední zdvih
- 170 mm
