MONDRAKER Foxy R 29
- Značka
- Mondraker
- Kategorie
- Enduro kola
- Modelový rok
- 2024
- Cena
- 84 999 Kč
- Do obchodu

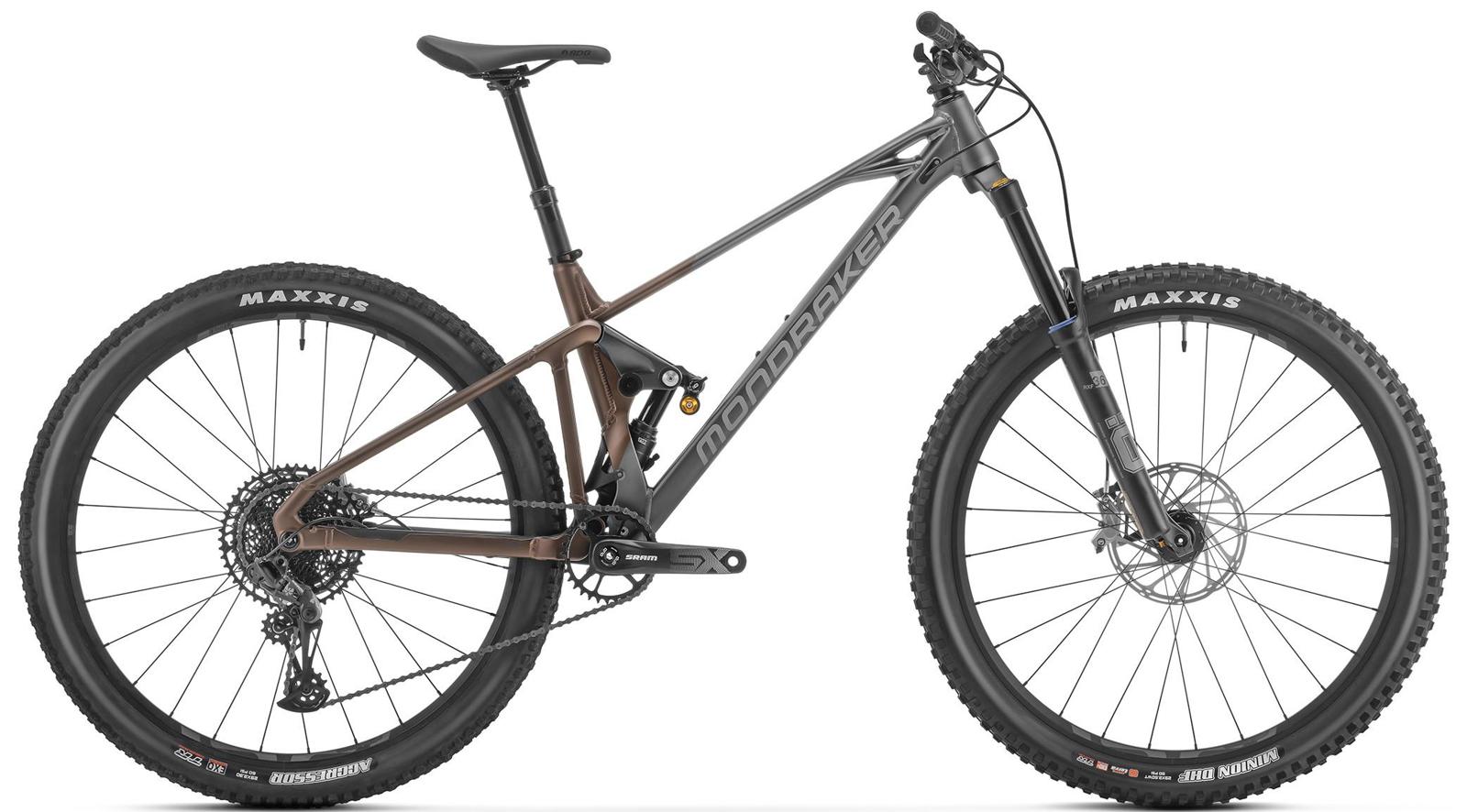

MONDRAKER Foxy R 29, graphite grey/bronze/fog grey
Specifikace MONDRAKER Foxy R 29
- Sezóna
- jaro/léto24
- Barva
- Mix
- Pohlaví
- UNISEX
- Rám
- Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
- Velikosti
- S: 380mm / M: 420mm / L: 470mm / XL: 510mm
- Zadní tlumič
- Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
- Nastavení tlumiče
- C20 compression, R35 rebound
- Vidlice
- Öhlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40
- Hlavové složení
- Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45?x45?, bottom 51.9x40x8x45?x45?
- Představec
- Onoff Sulfur FG 30mm 0?, 6061 forged alloy, 31.8mm barbore
- Řídítka
- Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9? backsweep, 5? upsweep, 31.8mm barbore
- Sedlo
- SDG BEL-AIR 3.0, LPU foam, steel rails
- Sedlovka
- Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
- Přední brzda
- Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Zadní brzda
- Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Brzdové páčky
- Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
- Ráfky
- e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
- Dráty
- e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
- Přední náboj
- e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
- Zadní náboj
- e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
- Přední plášť
- Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
- Zadní plášť
- Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
- Kliky
- Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55
- Středové složení
- Sram DUB BSA, sealed bearings, 73mm
- Převodník
- 32T, CNC-machined alloy, X-SYNC 2
- Řetěz
- Sram SX Eagle, 12s, Powerlock
- Přehazovačka
- Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
- Řadící páčka
- Sram Trigger SX Eagle, 12s, X-Actuation 1:1
- Kazeta
- Sram PG-1230, 11-50T, 12s
- Počet převodů
- 1X12
- Velikost kol
- 29
- Patka přehazovačky
- Sram UDH
- Hmotnost
- 16,2 kg
- Typ vidlice
- SUSPENSION FORK
- Materiál rámu
- ALUMINIUM
- Zadní zdvih
- 150 mm
- Přední zdvih
- 160 mm
