MONDRAKER Super Foxy Carbon RR
- Značka
- Mondraker
- Kategorie
- Enduro kola
- Modelový rok
- 2024
- Cena
- 184 799 Kč
- Do obchodu

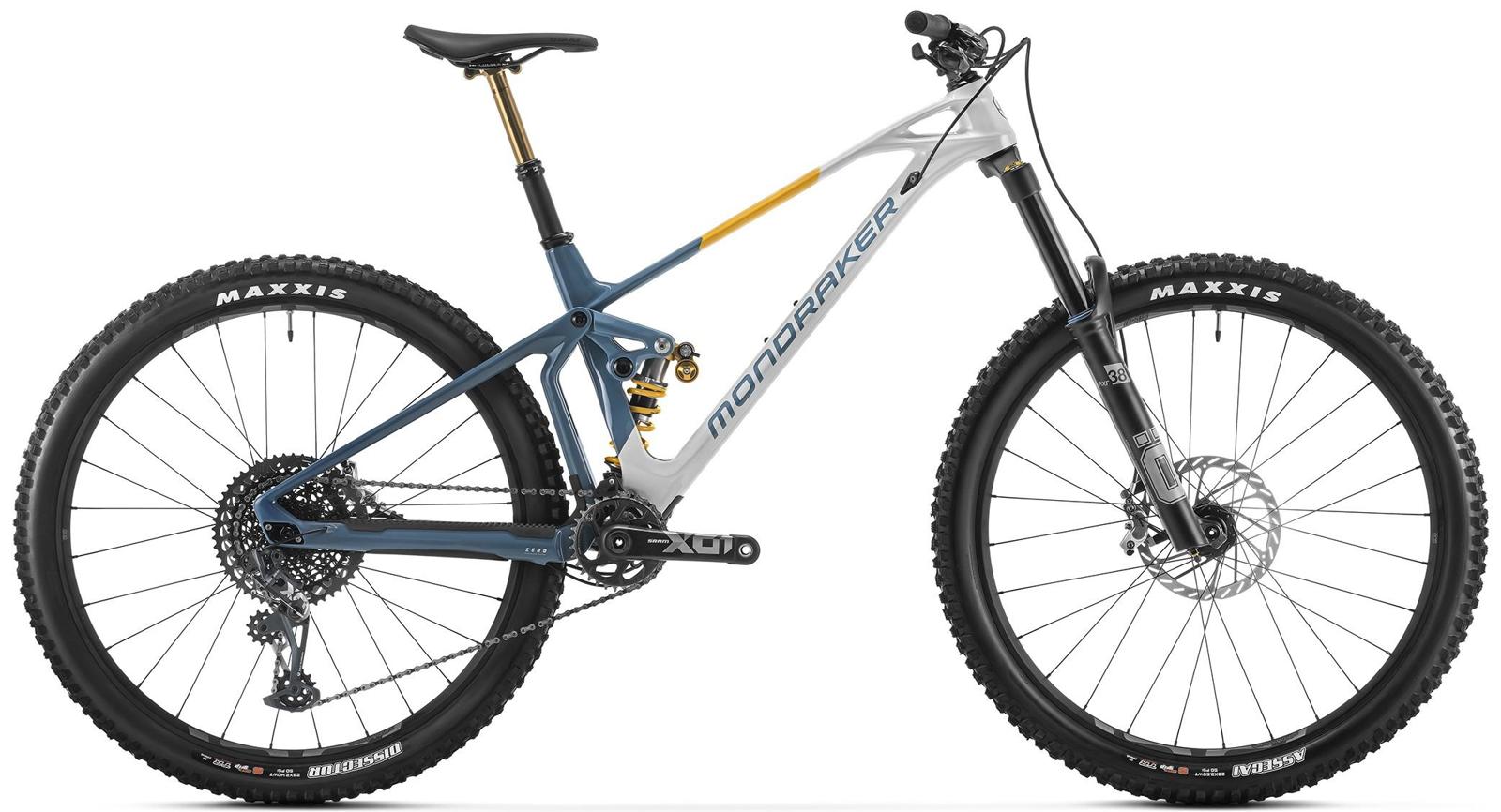

MONDRAKER Super Foxy Carbon RR, bunker grey/denim blue/yellow
Specifikace MONDRAKER Super Foxy Carbon RR
- Sezóna
- jaro/léto24
- Barva
- Mix
- Pohlaví
- UNISEX
- Rám
- SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included
- Velikosti
- S: 380mm / M: 420mm / L: 470mm / XL: 510mm
- Zadní tlumič
- Öhlins TTX 22M.2 NH Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
- Nastavení tlumiče
- C10 compression, R35 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs
- Vidlice
- Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
- Hlavové složení
- Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45?x45?, bottom 51.9x40x8x45?x45?
- Představec
- Onoff Krypton FG 30mm, CNC, 31.8mm barbore
- Řídítka
- Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9? backsweep, 5? upsweep, 31.8mm barbore
- Sedlo
- SDG BEL-AIR 3.0, LPU foam, steel rails
- Sedlovka
- Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm
- Přední brzda
- Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Zadní brzda
- Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Brzdové páčky
- Sram Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
- Ráfky
- e*thirteen LG1 Plus Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
- Dráty
- e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
- Přední náboj
- e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
- Zadní náboj
- e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
- Přední plášť
- Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
- Zadní plášť
- Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
- Kliky
- Sram X01 Carbon Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 56´5
- Středové složení
- Sram DUB BSA, sealed bearings, 73mm, superboost
- Převodník
- 32T, CNC-machined alloy, X-SYNC 2
- Řetěz
- Sram GX Eagle, 12s, Powerlock
- Přehazovačka
- Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
- Řadící páčka
- Sram Trigger X01 Eagle, 12s, X-Actuation 1:1
- Kazeta
- Sram XG-1275, 10-52T, 12s
- Počet převodů
- 1X12
- Velikost kol
- 29
- Patka přehazovačky
- Mondraker M071
- Hmotnost
- 15,8 kg
- Typ vidlice
- SUSPENSION FORK
- Materiál rámu
- carbon
- Zadní zdvih
- 160 mm
- Přední zdvih
- 170 mm
