MONDRAKER Super Foxy Carbon R
- Značka
- Mondraker
- Kategorie
- Enduro kola
- Modelový rok
- 2024
- Cena
- 122 499 Kč
- Do obchodu

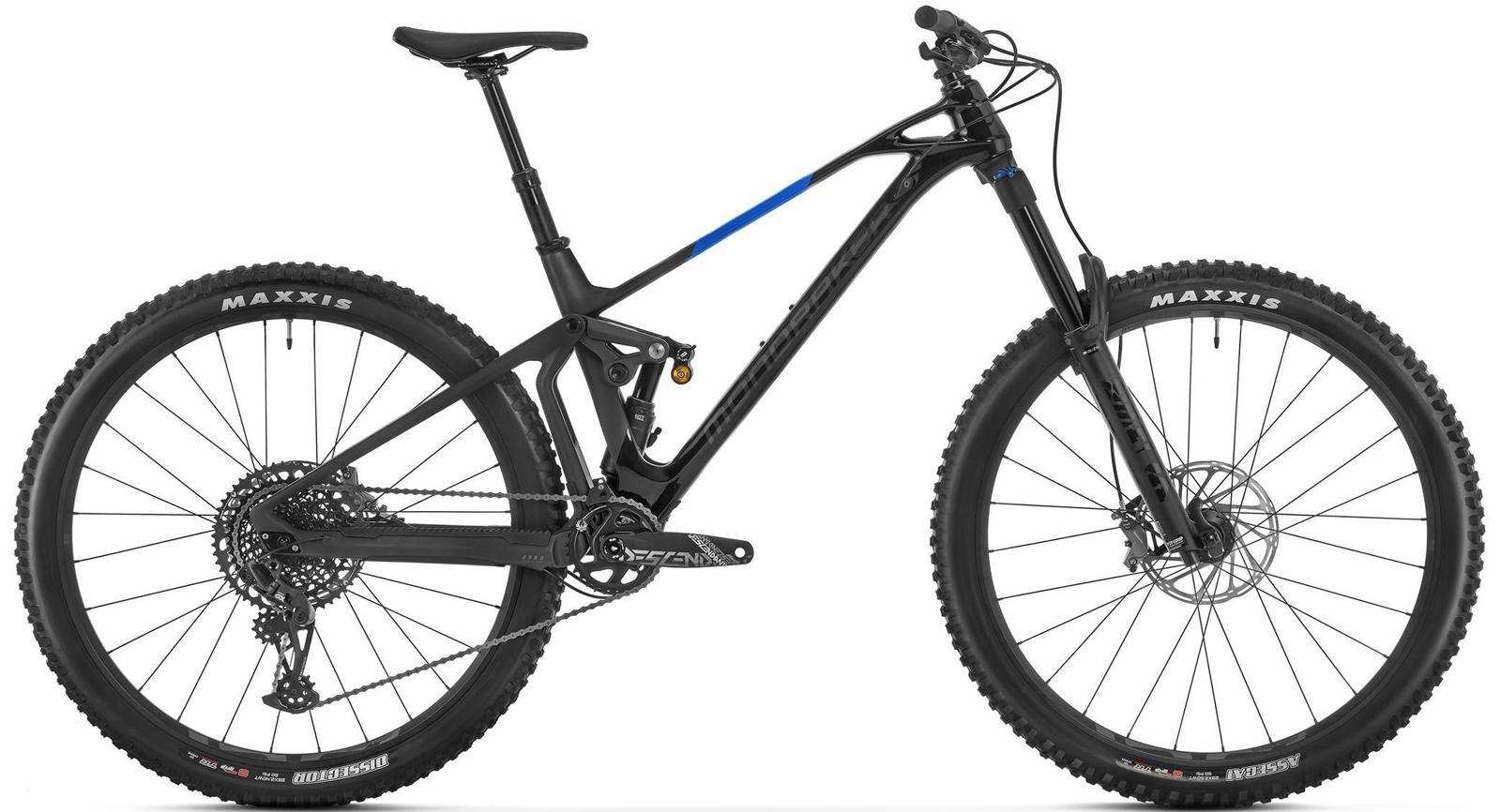

MONDRAKER Super Foxy Carbon R, black/carbon/carrera blue
Specifikace MONDRAKER Super Foxy Carbon R
- Sezóna
- jaro/léto24
- Barva
- Black
- Pohlaví
- UNISEX
- Rám
- SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit
- Velikosti
- S: 380mm / M: 420mm / L: 470mm / XL: 510mm
- Zadní tlumič
- Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
- Nastavení tlumiče
- C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
- Vidlice
- Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
- Hlavové složení
- Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45?x45?, bottom 51.9x40x8x45?x45?
- Představec
- Onoff Sulfur FG 30mm 0?, 6061 forged alloy, 31.8mm barbore
- Řídítka
- Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9? backsweep, 5? upsweep, 31.8mm barbore
- Sedlo
- SDG BEL-AIR 3.0, LPU foam, steel rails
- Sedlovka
- Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
- Přední brzda
- Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Zadní brzda
- Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Brzdové páčky
- Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
- Ráfky
- e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
- Dráty
- e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
- Přední náboj
- e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
- Zadní náboj
- e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
- Přední plášť
- Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
- Zadní plášť
- Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
- Kliky
- Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 56´5
- Středové složení
- Sram DUB BSA, sealed bearings, 73mm, superboost
- Převodník
- 32T, CNC-machined alloy, X-SYNC 2
- Řetěz
- Sram NX Eagle, 12s, Powerlock
- Přehazovačka
- Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
- Řadící páčka
- Sram Trigger GX Eagle, 12s, X-Actuation 1:1
- Kazeta
- Sram XG-1275, 10-52T, 12s
- Počet převodů
- 1X12
- Velikost kol
- 29
- Patka přehazovačky
- Mondraker M071
- Hmotnost
- 16,1 kg
- Typ vidlice
- SUSPENSION FORK
- Materiál rámu
- carbon
- Zadní zdvih
- 160 mm
- Přední zdvih
- 170 mm
