MONDRAKER Summum RR MX
- Značka
- Mondraker
- Kategorie
- Sjezdová kola
- Cena
- 144 999 Kč
- Do obchodu

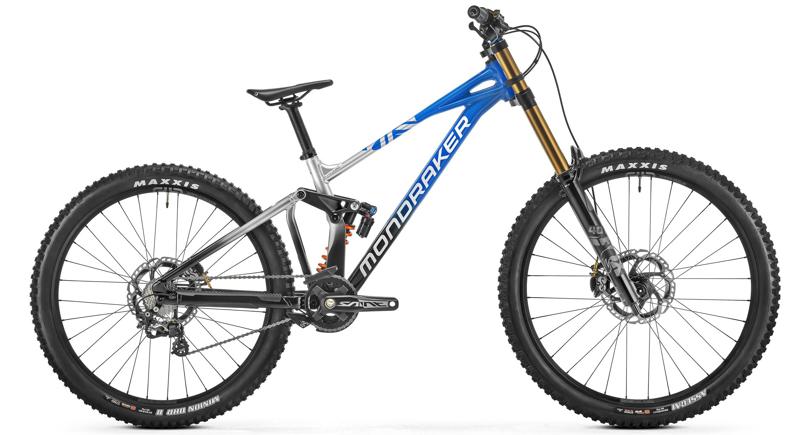

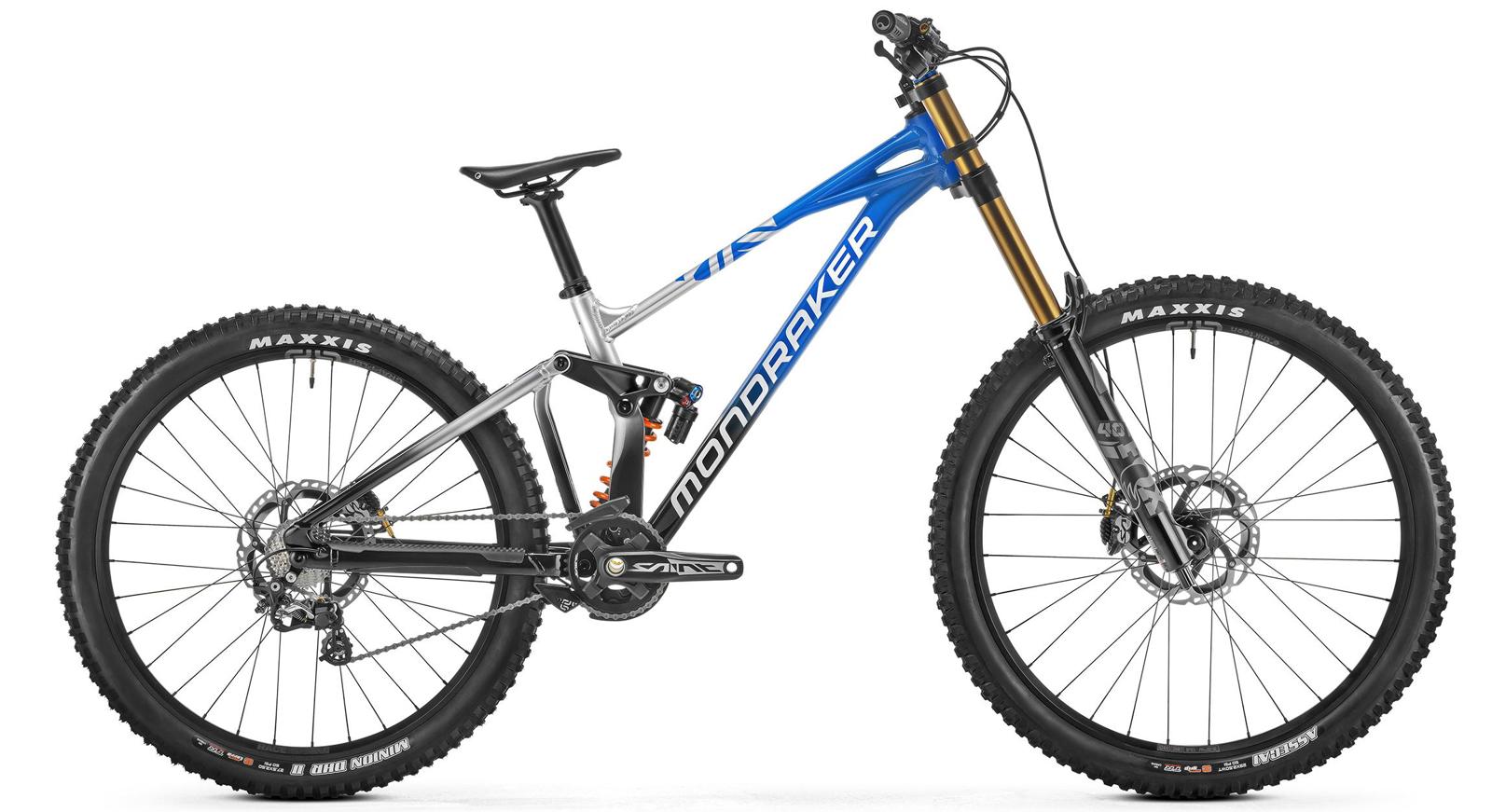

MONDRAKER Summum RR MX, carrera blue/racing silver/black
Specifikace MONDRAKER Summum RR MX
- Sezóna
- jaro/léto25
- Barva
- Blue
- Pohlaví
- UNISEX
- Rám
- Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit
- Velikosti
- S / M / L / XL
- Zadní tlumič
- Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
- Nastavení tlumiče
- CX004 compression, ECR012 rebound Rezi BX001. Spring rate: S size 400 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs
- Vidlice
- Fox 40 29 Float FIT GRIP X2 EVOL Factory Kashima, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 52mm. Settings: high and low-speed compression, high and low-speed rebound, air preload
- Hlavové složení
- Onoff ZS56/ZS56, 1-1/8", 1-1/8" steerer tube, 42x30x7x45?x45? ACB sealed bearings, geometry kit cups, external diameter 62mm
- Představec
- Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer
- Řídítka
- Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8? backsweep, 5? upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
- Sedlo
- Ergon SM10 DH Black
- Sedlovka
- Onoff S3 DH Alloy, diameter 31.6mm, length 300mm
- Přední brzda
- Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler
- Zadní brzda
- Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler
- Brzdové páčky
- Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust
- Ráfky
- e*thirteen Grappler Race DH, IW29 29" Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes
- Dráty
- e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
- Přední náboj
- e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
- Zadní náboj
- e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub\n
- Přední plášť
- Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
- Zadní plášť
- Maxxis Dissector 27'5x2.4 WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
- Kliky
- Shimano Saint M825 Hollowtech II, reinforced steel axle, 165mm
- Středové složení
- Shimano 83mm
- Převodník
- 36T, aluminum, BCD 104
- Řetěz
- Shimano HG95, 10s
- Přehazovačka
- Shimano Saint RD-M820-SS, 10s, Shadow+, short cage
- Přesmykač
- e*Thirteen Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
- Řadící páčka
- Shimano Saint SL-M820 10s, low friction multi bearing, instant release, multi release, 2-way release
- Kazeta
- Shimano CS-HG500-10, 11-25T, 10s
- Počet převodů
- 1X10
- Velikost kol
- 29/27,5
- Patka přehazovačky
- Mondraker M068
- Hmotnost
- 17,8 kg
- Typ vidlice
- SUSPENSION FORK
- Materiál rámu
- ALUMINIUM
- Zadní zdvih
- 200 mm
- Přední zdvih
- 203 mm
