MONDRAKER Summum Carbon RR MX
- Značka
- Mondraker
- Kategorie
- Sjezdová kola
- Modelový rok
- 2024
- Cena
- 184 999 Kč
- Do obchodu

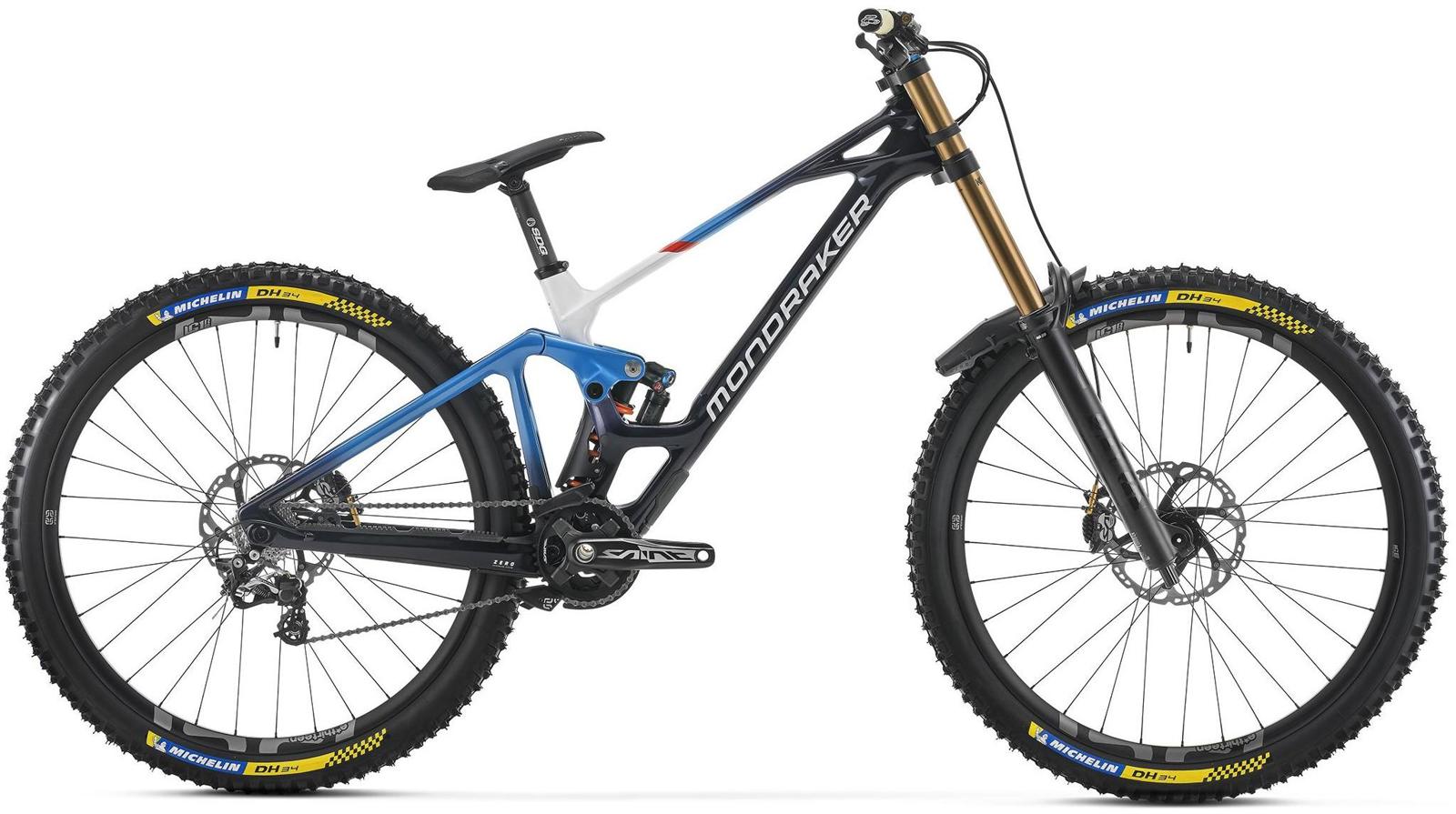

MONDRAKER Summum Carbon RR MX, navy blue/marlin blue/white/flame red
Specifikace MONDRAKER Summum Carbon RR MX
- Sezóna
- jaro/léto24
- Barva
- Blue
- Pohlaví
- UNISEX
- Rám
- Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included. MIND System V2
- Velikosti
- S / M / L / XL MX
- Zadní tlumič
- Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
- Nastavení tlumiče
- ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs
- Vidlice
- Fox 40 29 Float FIT GRIP2 EVOL Factory Kashima, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: high and low-speed compression, high and low-speed rebound, air preload
- Hlavové složení
- Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45?x45? ACB sealed bearings, geometry kit cups, external diameter 56mm
- Představec
- Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
- Řídítka
- Renthal Fatbar series 7 alloy, rise: 30mm, width: 800mm, 7? backsweep, 5? upsweep, 31.8mm barbore
- Sedlo
- SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
- Sedlovka
- SDG Micro I-Beam SP-951 Carbon, diameter 31.6mm, length 300mm, micro-adjustment
- Přední brzda
- Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler
- Zadní brzda
- Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler
- Brzdové páčky
- Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust
- Ráfky
- e*thirteen LG1 Race Carbon, IW30 29" Hookless, World Cup carbon fiber, 30mm internal width, tubeless ready, 32 spokes
- Dráty
- e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
- Přední náboj
- e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
- Zadní náboj
- e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub\n
- Přední plášť
- Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
- Zadní plášť
- Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
- Kliky
- Shimano Saint M825 Hollowtech II, reinforced steel axle, 165mm
- Středové složení
- Shimano 83mm
- Převodník
- 36T, aluminum, BCD 104
- Řetěz
- Shimano HG95, 10s
- Přehazovačka
- Shimano Saint RD-M820-SS, 10s, Shadow+, short cage
- Přesmykač
- E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
- Řadící páčka
- Shimano Saint SL-M820 10s, low friction multi bearing, instant release, multi release, 2-way release
- Kazeta
- Shimano CS-HG500-10, 11-25T, 10s
- Počet převodů
- 1X10
- Velikost kol
- 29/27,5
- Patka přehazovačky
- Mondraker M075
- Hmotnost
- 16,7 kg
- Typ vidlice
- SUSPENSION FORK
- Materiál rámu
- carbon
- Zadní zdvih
- 200 mm
- Přední zdvih
- 203 mm
