MONDRAKER Level R
- Značka
- Mondraker
- Kategorie
- Horská elektrokola
- Modelový rok
- 2024
- Cena
- 139 999 Kč
- Do obchodu

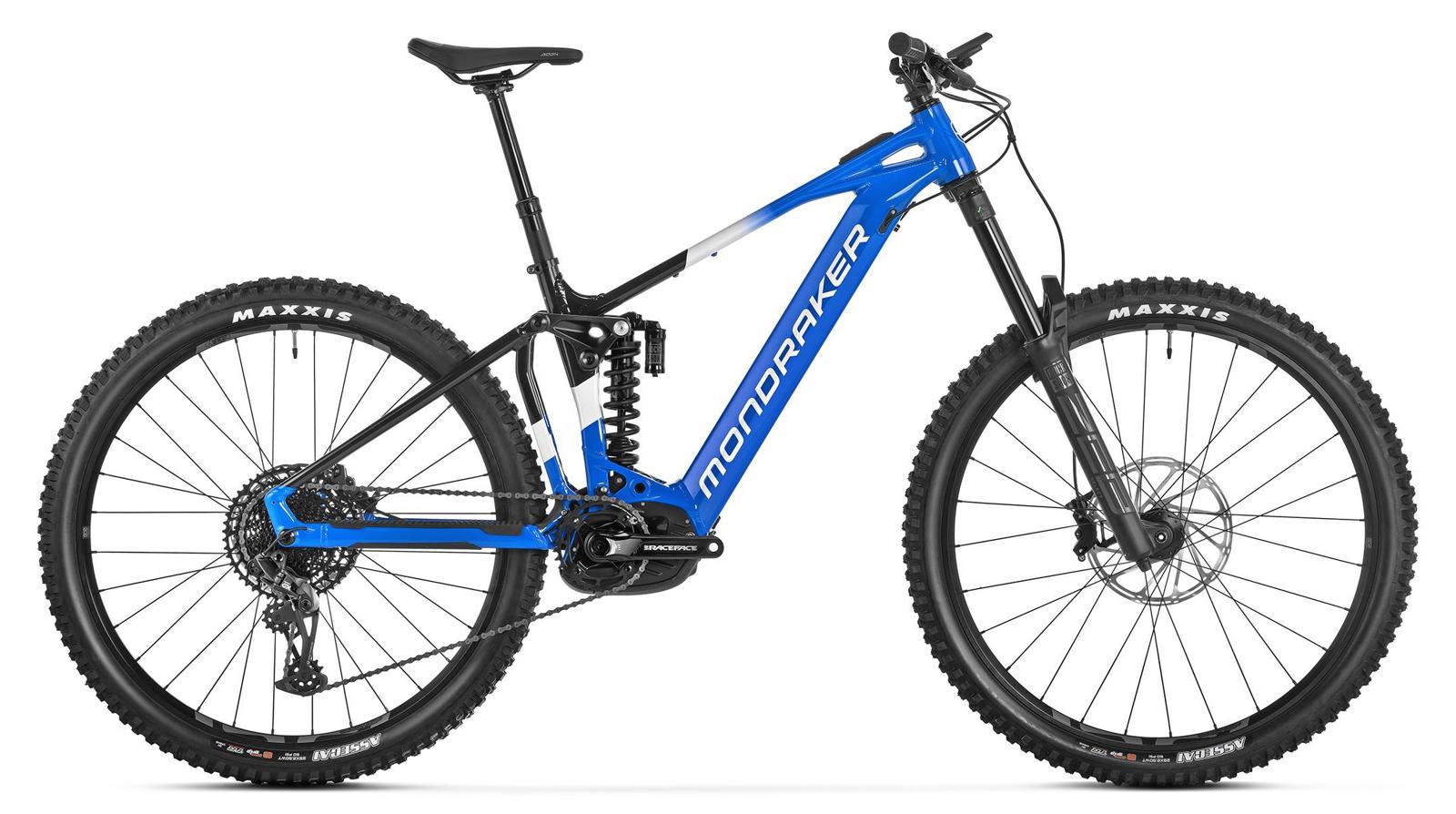

MONDRAKER Level R, carrera blue/navy blue
Specifikace MONDRAKER Level R
- Sezóna
- jaro/léto24
- Barva
- Blue
- Pohlaví
- UNISEX
- Rám
- Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers
- Velikosti
- S: 380mm / M: 420mm / L: 450mm / XL: 490mm
- Zadní tlumič
- RockShox Super Deluxe coil Select R, 225x75mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings
- Nastavení tlumiče
- Medium compression, Linear rebound. Spring rate: S size 300 lbs, M size 300 lbs, L size 350 lbs, XL size 400 lbs
- Vidlice
- RockShox ZEB Select Charger RC 29, 180mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload
- Hlavové složení
- Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45?x45?, bottom 51.9x40x8x45?x45?
- Představec
- Onoff Sulfur FG 30mm 0?, 6061 forged alloy, 31.8mm barbore
- Řídítka
- Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9? backsweep, 5? upsweep, 31.8mm barbore
- Sedlo
- FIZIK Terra Aidon X5 145mm
- Sedlovka
- Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
- Přední brzda
- Sram DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Zadní brzda
- Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Brzdové páčky
- Sram DB8, tool reach adjust, lever pivot bushings
- Ráfky
- e*thirteen E*Spec, IW30 Hookless, 6069 Welded Aluminum\n30mm internal width, tubeless ready, 28F / 32R spokes
- Dráty
- e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
- Přední náboj
- e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
- Zadní náboj
- e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub\n
- Přední plášť
- Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
- Zadní plášť
- Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
- Kliky
- Race Face Aeffect ebike, 165mm
- Převodník
- Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
- Řetěz
- Sram SX Eagle, 12s, Powerlock
- Přehazovačka
- Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
- Řadící páčka
- Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
- Kazeta
- Sram PG-1210, 11-50T, 12s
- Displej
- Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
- Motor
- Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
- Baterie
- Bosch Powertube 750Wh
- Počet převodů
- 1X12
- Velikost kol
- 29
- Patka přehazovačky
- Mondraker M068
- Hmotnost
- 26,7 kg
- Typ vidlice
- SUSPENSION FORK
- Materiál rámu
- ALUMINIUM
- Zadní zdvih
- 170 mm
- Přední zdvih
- 180 mm
