MONDRAKER Foxy Carbon XR 29
- Značka
- Mondraker
- Kategorie
- Enduro kola
- Modelový rok
- 2024
- Cena
- 179 999 Kč
- Do obchodu

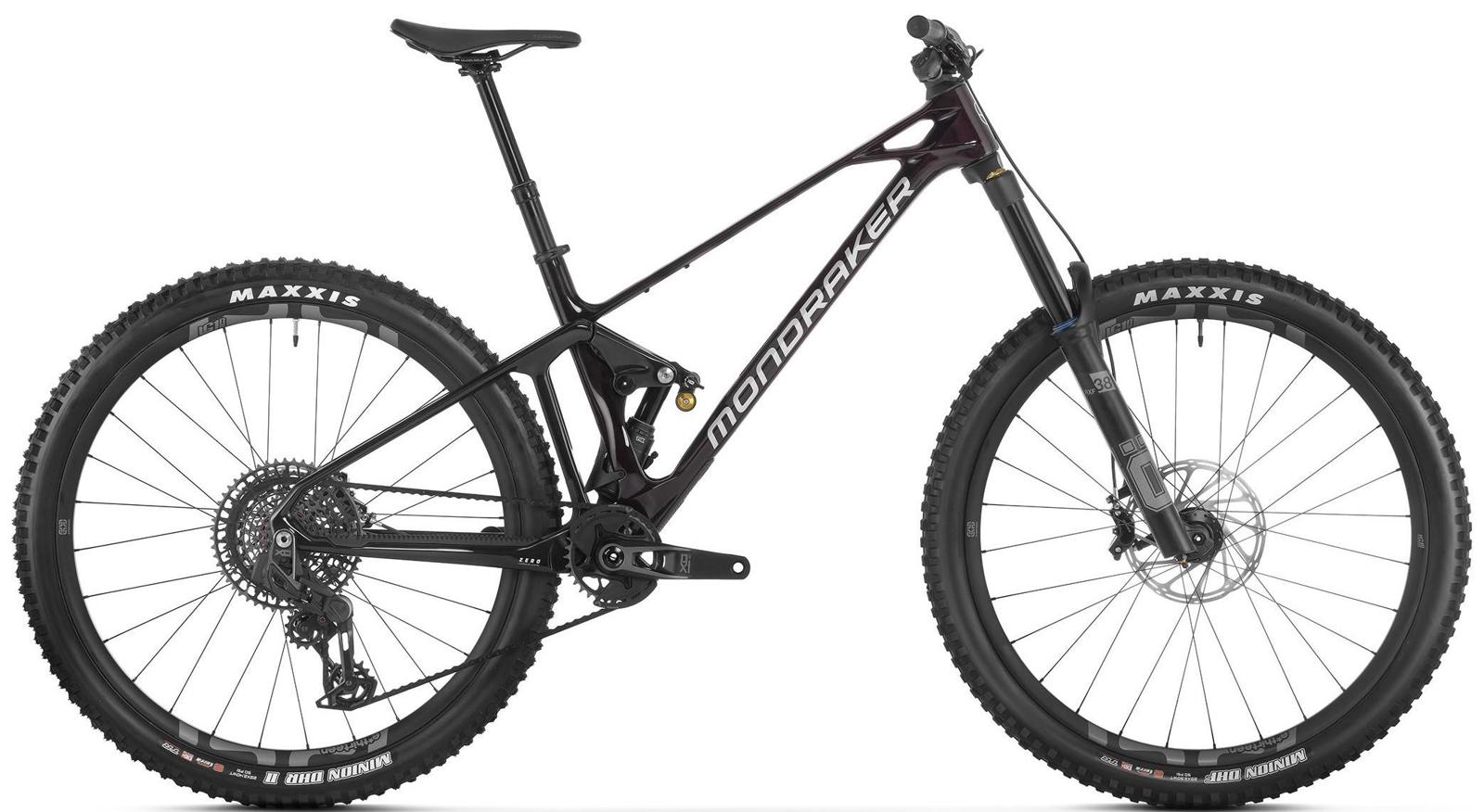

MONDRAKER Foxy Carbon XR 29, translucent red carbon/black/racing silver
Specifikace MONDRAKER Foxy Carbon XR 29
- Sezóna
- jaro/léto24
- Barva
- Red
- Pohlaví
- UNISEX
- Rám
- Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
- Velikosti
- S: 380mm / M: 420mm / L: 450mm / XL: 500mm
- Zadní tlumič
- Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
- Nastavení tlumiče
- C10 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
- Vidlice
- Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
- Hlavové složení
- Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
- Představec
- Onoff Krypton FG 30mm, CNC, 31.8mm barbore
- Řídítka
- Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9? backsweep, 5? upsweep, 31.8mm barbore
- Sedlo
- SDG BEL-AIR 3.0, LPU foam, steel rails
- Sedlovka
- Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
- Přední brzda
- Sram Code Silver Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Zadní brzda
- Sram Code Silver Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
- Brzdové páčky
- Sram Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
- Ráfky
- e*thirteen Race Carbon Enduro IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes
- Dráty
- e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
- Přední náboj
- e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
- Zadní náboj
- e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
- Přední plášť
- Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
- Zadní plášť
- Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
- Kliky
- Sram X0 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm CL 55
- Středové složení
- Sram DUB BSA, sealed bearings, 73mm, wide
- Převodník
- 32T, CNC-machined alloy, T-Type
- Řetěz
- Sram X0 Eagle T-Type, 12s, Powerlock
- Přehazovačka
- Sram X0 Eagle AXS T-Type, roller bearing clutch, cage lock, 1x12s
- Řadící páčka
- Sram Eagle AXS Pod MMX, 12s
- Kazeta
- Sram XS-1295, 10-52T, T-Type 12s
- Počet převodů
- 1X12
- Velikost kol
- 29
- Patka přehazovačky
- Sram UDH
- Hmotnost
- 14,3 kg
- Typ vidlice
- SUSPENSION FORK
- Materiál rámu
- carbon
- Zadní zdvih
- 150 mm
- Přední zdvih
- 170 mm
