MONDRAKER Dune Carbon XR
- Značka
- Mondraker
- Kategorie
- Horská elektrokola
- Modelový rok
- 2025
- Cena
- 292 499 Kč
- Do obchodu

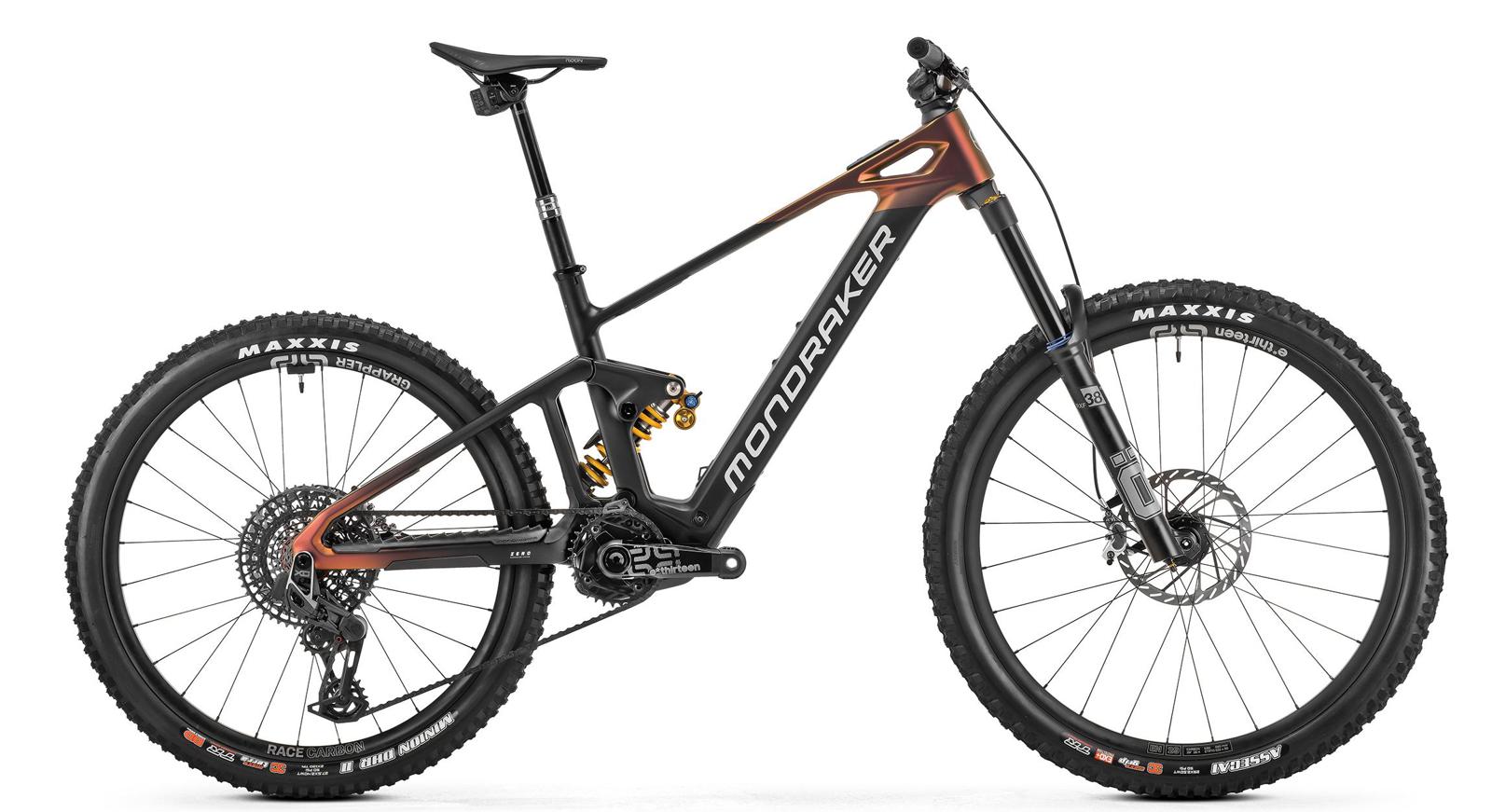

MONDRAKER Dune Carbon XR, black/mars/racing silver
Specifikace MONDRAKER Dune Carbon XR
- Sezóna
- jaro/léto25
- Barva
- Mix
- Pohlaví
- UNISEX
- Rám
- Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
- Velikosti
- S: 380mm / M: 420mm / L: 450mm / XL: 490mm
- Zadní tlumič
- Öhlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
- Nastavení tlumiče
- C10 compression, R20 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs
- Vidlice
- Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
- Hlavové složení
- Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
- Představec
- Onoff S9 30mm 0?, Full CNC, 31.8mm barbore
- Řídítka
- Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8? backsweep, 5? upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
- Sedlo
- Fizik Terra Aidon Slim X5
- Sedlovka
- RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
- Přední brzda
- Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Zadní brzda
- Sram Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Brzdové páčky
- Sram Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
- Ráfky
- e*thirteen Grappler Carbon, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes, 29 front, 27''5 rear
- Dráty
- e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
- Přední náboj
- e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
- Zadní náboj
- e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
- Přední plášť
- Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
- Zadní plášť
- Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
- Kliky
- e*Thirteen TRS Race carbon ebike, All sizes: 160mm
- Převodník
- Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
- Řetěz
- Sram X0 Eagle T-Type, 12s, Powerlock
- Přehazovačka
- Sram X0 Eagle AXS T-Type,12s
- Řadící páčka
- Sram Eagle AXS Pod MMX, 12s
- Kazeta
- Sram XS-1295, 10-52T, T-Type, 12s
- Displej
- Purion 400 / Bosch Mini Remote / Bosch System Controller
- Motor
- Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
- Baterie
- Bosch Compact Powertube 400Wh
- Počet převodů
- 1X12
- Velikost kol
- 29/27,5
- Patka přehazovačky
- Sram UDH
- Hmotnost
- 19,5 kg
- Typ vidlice
- SUSPENSION FORK
- Materiál rámu
- carbon
- Zadní zdvih
- 165 mm
- Přední zdvih
- 180 mm
