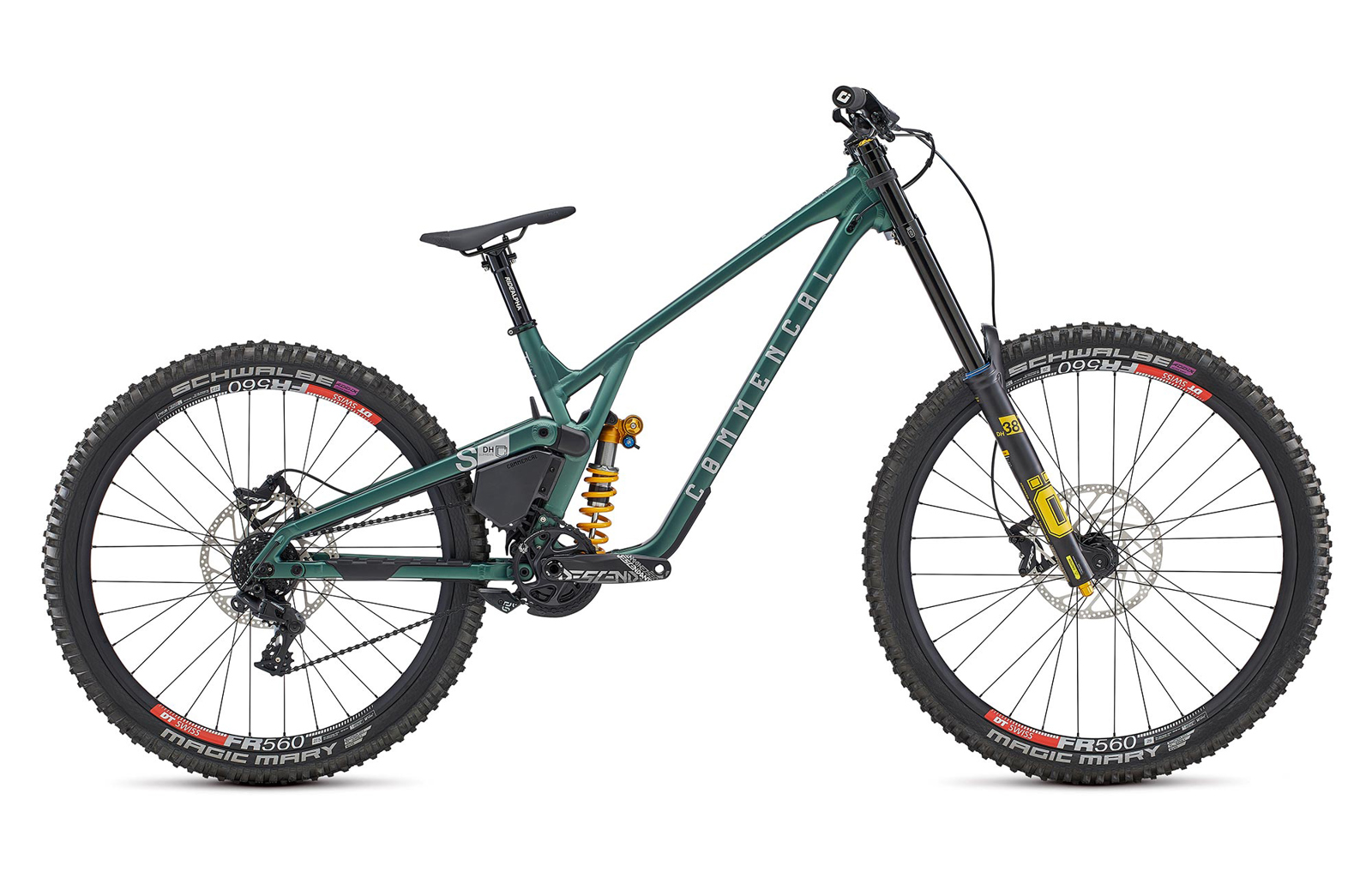

Commencal SUPREME DH V5 OHLINS EDITION METALLIC GREEN
- Značka
- Commencal
- Kategorie
- Sjezdová kola
- Modelový rok
- 2025
- Cena
- 173 938 Kč
- Do obchodu
CHECK OUT THE SUPREME DH V5 The SUPREME DH V5 is our pure race machine. It is the result of three years of work between our R&D department and our athletes. From the bike’s very first season racing World Cups, the results have been the best advertisement: 9 wins, 27 podiums and a first place in the Elite Women, Men and Team rankings. With a concentrate of technologies and experience, the V5 inaugurates the High Virtual Contact System kinematics. This is our interpretation of the most efficient system for combining liveliness and shock absorption. Thanks to the inserts in the aluminium frame, the geometry and behaviour of the bike can be adapted to suit the conditions of the day. SUPREME DH V5 SETTINGS GUIDE COMMENCAL SUPREME DH V5 ÖHLINS EDITION METALLIC GREEN The SUPREME DH V5 ÖHLINS EDITION features the best suspension from the legendary Swedish brand ÖHLINS. The DH38 m.1 Air fork combines an ultra-precise chassis with an air spring. It has a specific chamber to adjust progressiveness at the end of the stroke and a hydraulic cartridge with three adjustment settings. The TTX22m.2 shock absorber is one of the best rear suspension offerings for downhill riding. Used by many pros, the sensitivity and support are difficult to beat. TRP DH-R Evo brakes provide the stopping power: 4 pistons and 223mm discs make them powerful, durable, progressive, and precise. This model rolls on a pair of custom DT SWISS wheels with the FR 560 downhill rims, solid and dynamic, combined with heavy-duty 350 hubs. The SRAM GX DH transmission offers ultra-precise and quick gear changes for DH. Finally, a pair of SCHWALBE Magic Mary tyres with Super DH casing and Ultra Soft rubber provide phenomenal grip for this ÖHLINS EDITION. *Please note that bike specs are subject to change without prior notice.
Specifikace Commencal SUPREME DH V5 OHLINS EDITION METALLIC GREEN
- Rám
- SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL 27/29'', Alloy 6066, triple butted tubes, T4, T6
- Tlumič
- OHLINS TTX22 m.2 250 x 75 mm, HSC, LSC, rebound. Spring rates: 388 lbs on S, 434 lbs on M, 457 lbs on L, 502 lbs on XL
- Vidlice
- OHLINS DH38 m.1 Air, 200 mm travel 29", TTX 18 damper, LSC, HSC, rebound, Boost (20 x 110 mm), 54 mm offset
- Hlavové složení
- ACROS ZS56 / ZS56 Alloy cups, sealed bearings
- Představec
- RIDE ALPHA DH 40 40 mm extension, direct mount, 31.8 mm
- Řídítka
- RIDE ALPHA R27 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
- Gripy
- ODI Elite Motion Soft pro compound, single clamp, black
- Brzdy
- TRP DH-R Evo, 4 pistons, resin pads Rotors : TRP R1 223 mm, 6-bolt, 2.3 mm thickness
- Řazení
- SRAM GX DH 7 sp
- Vodítko řetězu
- E13 LG1 + Bottom Guide 32-34t
- Přehazovačka
- SRAM GX DH 7 sp
- Středové složení
- SRAM DUB Pressfit
- Kliky
- TRUVATIV Descendant DH, 165 mm crank arms, DUB Chainring: TRUVATIV Descendant DH X-Sync, 34t
- Řetěz
- KMC X11EL Black
- Kazeta
- SRAM PG-720 7s, 11-25t
- Ráfky
- DT SWISS FR560 Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner width
- Náboje
- Rear: DT SWISS 350 - Front: DT SWISS 350 Rear: 32h, sealed bearings, 12 x 157 mm, Shimano Hyperglide, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
- Dráty
- DT SWISS Competition J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with ProLock, black
- Pneumatiky
- Rear: SCHWALBE Magic Mary - Front: SCHWALBE Magic Mary Rear: 27.5'' x 2.4'', Super DH, Addix Ultra Soft - Front: 29" x 2.4", Super DH, Addix Ultra Soft
- Sedlovka
- RIDE ALPHA Super Light 31.6 mm, 250 mm length
- Sedlo
- FIZIK Gravita Alpaca X5 130 mm width, S-Alloy rails
- Hmotnost
- 18,4 kg / 40,56 lbs Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
- Pedals included
- No
- Colour
- Metallic Green Matte Finish
- Accessories
- Chainstay protector, seatstay protector, downtube protector, roller cover, frame mudguard *Please note that bike specs are subject to change without prior notice.
- Zadní zdvih
- 220 mm
- Přední zdvih
- 200 mm
