MONDRAKER Crafty XR
- Značka
- Mondraker
- Kategorie
- Horská elektrokola
- Modelový rok
- 2024
- Cena
- 157 499 Kč
- Do obchodu

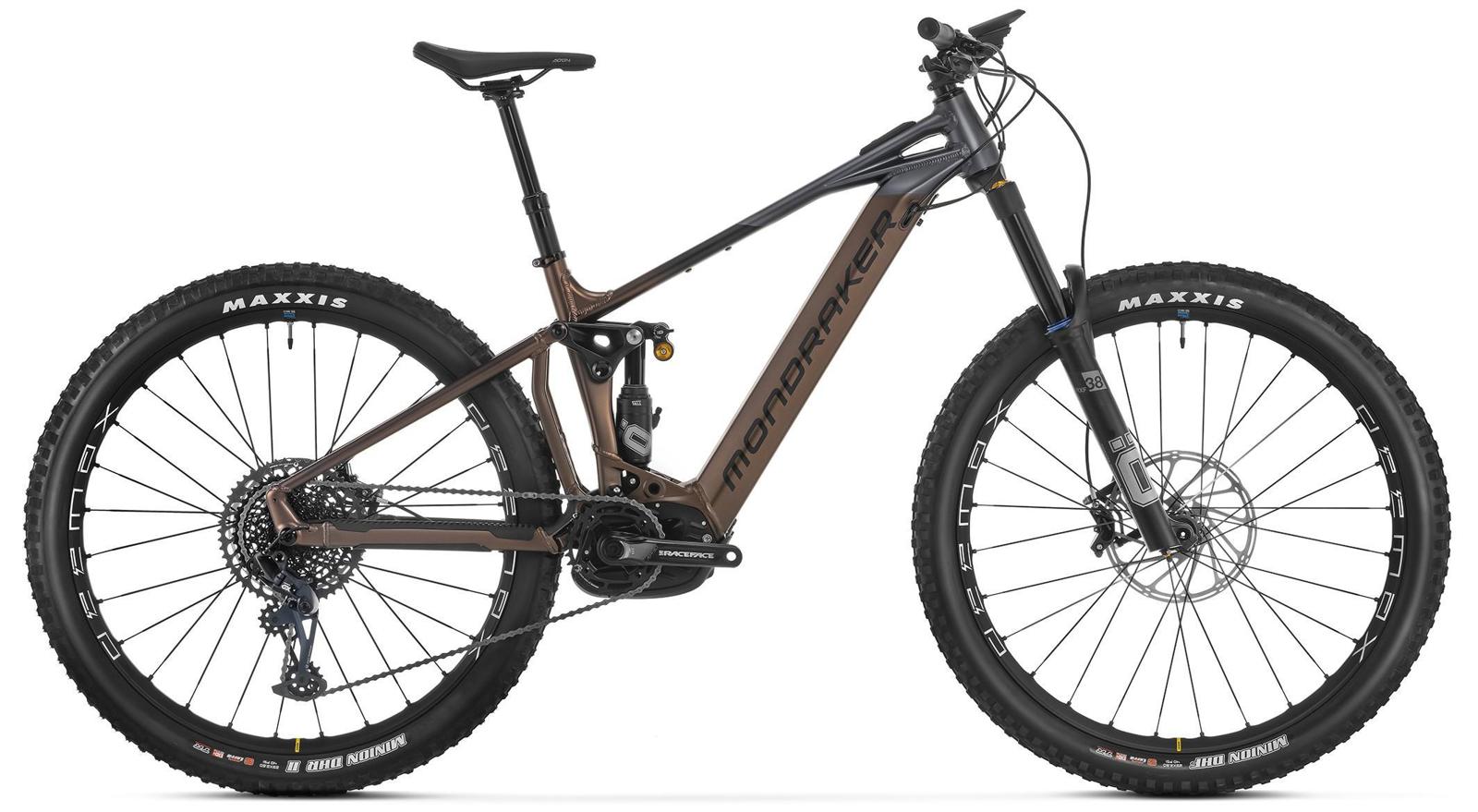

MONDRAKER Crafty XR, bronze/graphite grey/black
Specifikace MONDRAKER Crafty XR
- Sezóna
- jaro/léto24
- Barva
- Brown
- Pohlaví
- UNISEX
- Rám
- Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
- Velikosti
- S: 380mm / M: 420mm / L: 450mm / XL: 490mm
- Zadní tlumič
- Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
- Nastavení tlumiče
- C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)
- Vidlice
- Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
- Hlavové složení
- Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45?x45?, bottom 51.9x40x8x45?x45?
- Představec
- Onoff Krypton FG 30mm, CNC, 31.8mm barbore
- Řídítka
- Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9? backsweep, 5? upsweep, 31.8mm barbore
- Sedlo
- FIZIK Terra Aidon X5 145mm
- Sedlovka
- Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
- Přední brzda
- Sram Code Silver Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Zadní brzda
- Sram Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
- Brzdové páčky
- Sram Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
- Ráfky
- Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
- Dráty
- Mavic straight-pull double butted, contactless lacing
- Přední náboj
- Mavic, Boost 15x110mm, IS 6 bolts
- Zadní náboj
- Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
- Přední plášť
- Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
- Zadní plášť
- Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
- Kliky
- Race Face Aeffect ebike, 165mm
- Převodník
- Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
- Řetěz
- Sram NX Eagle, 12s, Powerlock
- Přehazovačka
- Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
- Řadící páčka
- Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
- Kazeta
- Sram XG-1275, 10-52T, 12s
- Displej
- Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
- Motor
- Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
- Baterie
- Bosch Powertube 750Wh
- Počet převodů
- 1X12
- Velikost kol
- 29
- Patka přehazovačky
- Mondraker M068
- Hmotnost
- 25,3 kg
- Typ vidlice
- SUSPENSION FORK
- Materiál rámu
- ALUMINIUM
- Zadní zdvih
- 150 mm
- Přední zdvih
- 170 mm
